■Product Features |
■Product configuration: The light source adopts (CREE) brand LED lightemitting chip, with ultra-high luminous efficiency and an average service life of up to 100,000 hours. They are all driven by firstline brand power supplies, processed by wide voltage technology, with guaranteed quality, constant current output, and short circuit. , Overvoltage protection, etc.

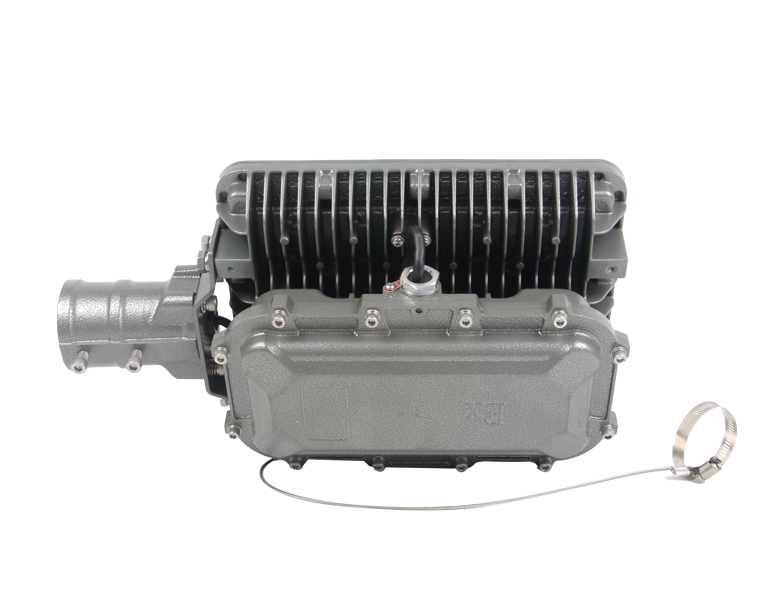

■Heat dissipation design: The light source radiator is formed by onepiece diecasting, with a firm structure, excellent thermal conductivity and heat dissipation performance, and effectively controls the temperature rise of the lamp within a reasonable range, thus ensuring the service life of the lamp.

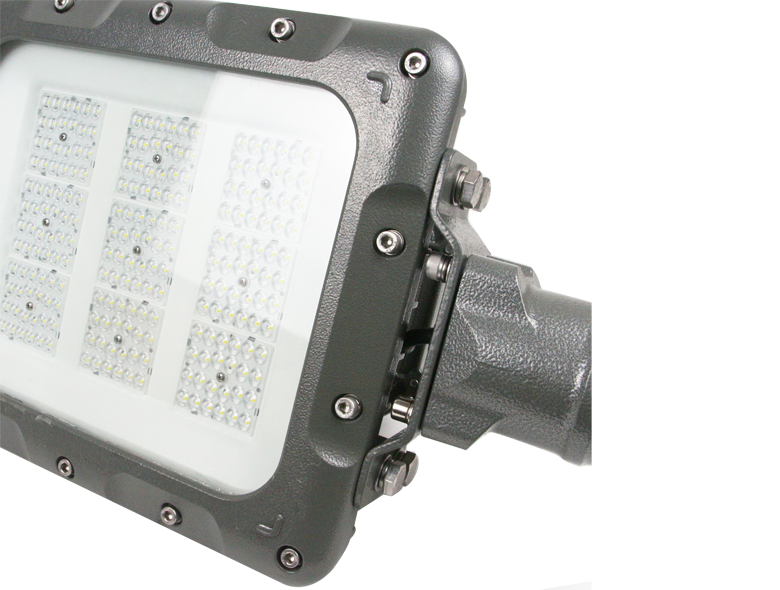

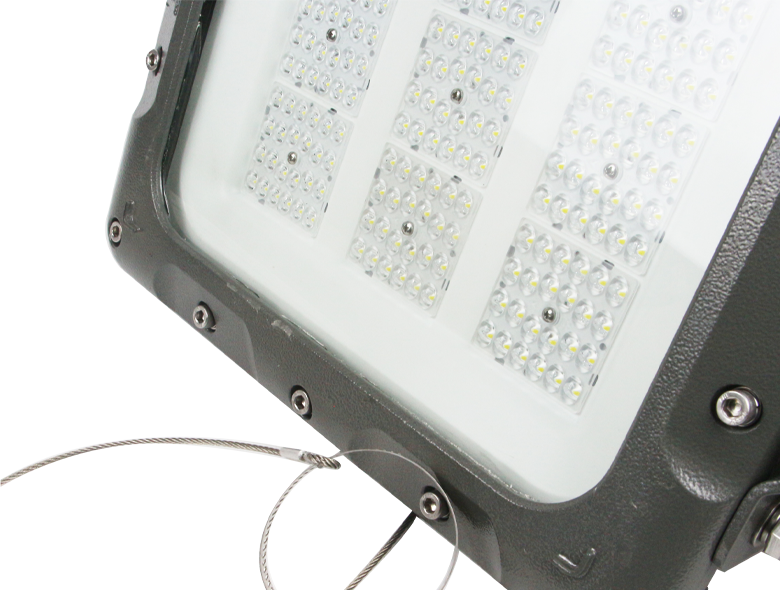

■Protective lampshade: high borosilicate tempered glass, corrosion resistance, impact resistance, high light transmittance, uniform and soft light irradiation, anti-glare.
■Protection and anticorrosion: The lamp body is treated with highvoltage electrostatic spraying, and the screw fasteners are made of stainless steel. With highprecision processing technology, it has the characteristics of high anti-corrosion, high waterproof and high dust resistance.
Item | Symbol | Description | Unit | |
Picture |
| |||
Rated Voltage | VOLT | AC100-240 | V | |
Power | P | 120-200 | W | |
Protection Level | IP | IP66 | IP | |
LED Chip | / | CREE3030 | ||
Explosion Proof Grade | / | II 2 G Ex db ⅡB T6 Gb; II 2 D Ex tb ⅢC T80° Db; | ||
Light Efficiency | η | 120 | Lm/W | |
Power Factor | PF | ＞0.95 | PF | |
Ambient Temperature | TOPR | -30~+50 | ℃ | |
Light Source | / | led | ||
Correlate Color Temperature | CCT | 3000-6500 | K | |
Color Rendering Index | CRI | ≥75 | Ra | |
LED'S Operating Life | LIFE | 100000 | Hours | |
Weight | / | 9.8 | KG | |

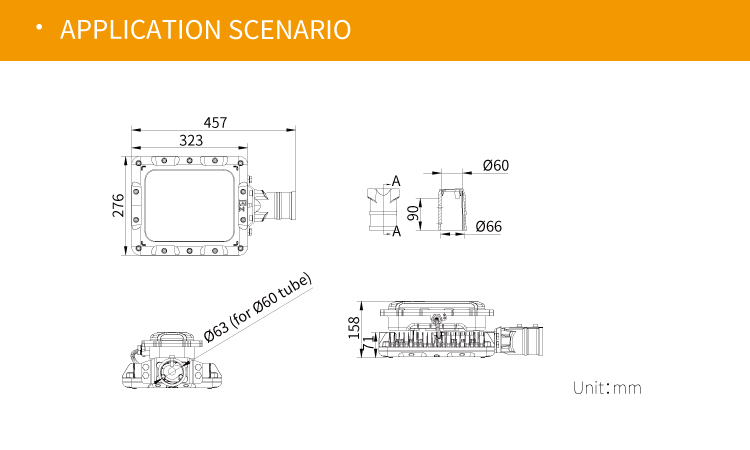

Size | / | 376×277×158mm | mm | |
