■Product Features |
■Excellent explosion-proof performance, can work safely in flammable and explosive places.
■Use high-efficiency, long-life gas discharge lamps and imported high-purity speculara alumina reflectors.
■ Through accurate light distribution design, the lamps have high efficiency, good lighting effect and high brightness.
■ Adopting the latest surface treatment technology through precise structure design, it can prevent rain and water spray.
■using high-strength aluminum alloy shell, with strong collision and impact resistance.can be used in a variety of mounting methods such as seat, wall, ceiling.
■ Product Parameters |
Item | Symbol | Description | Unit |

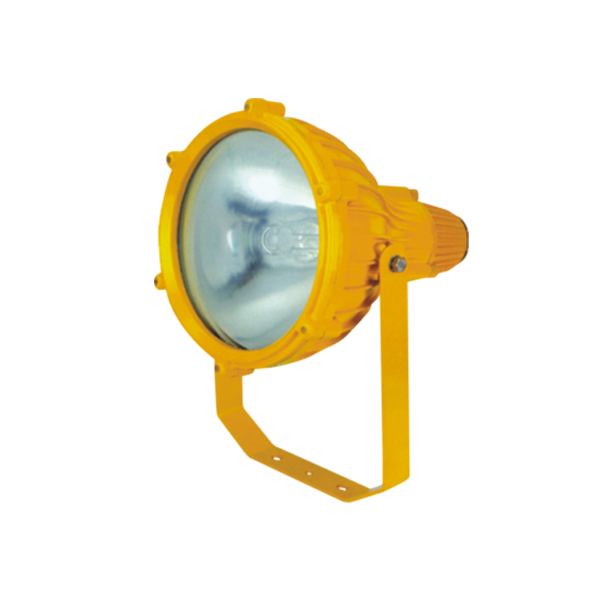

Picture |
| ||
Rated Voltage | VOLT | 220 | V |
Power | P | 250/400 | W |
Lighting Source | / | MH/HPS | |
Protection Level | IP | IP65 | IP |
Lighting Angle | θ | 90/120 | ° |
Anti-corrosion Grade | / | WF2 | |
Explosion Proof Grade | / | Ex d e IIC T4 | |
Light Efficiency | η | 90 | Lm/W |
Frequency | f | 50/60 | Hz |
Power Factor | PF | ＞0.90 | PF |
Operating Temperature | TOPR | -30~50 | ℃ |
Storage Temperature | TOPR | -30~50 | ℃ |
| Color Rendering Index | CRI | ≥65 | RA |
LED'S Operating Life | LIFE | 50000 | Hours |
Start-up Time | T | ≤20 | S |
Executive Standard | / | GB3836.1、GB3836.2 | |
Weight | / | 14.0 | KG |
Size | / | Φ368x460 | MM |
